Henkel and Covestro to combine their strengths to promote e-mobility

Adhesive solutions for efficient Li-ion cell assembly

As automotive electrification continues to evolve, powerful lithium-ion (li-ion) battery architectures are at the center of discussions around electric vehicles. While battery system designs vary by manufacturer, the joint performance objectives for all automotive battery technologies are longer lifetime, operational safety, cost efficiency and reliability. In their most recent collaboration, Henkel and Covestro developed a solution enabling the efficient fixation of cylindrical li-ion battery cells inside a plastic cell holder. The solution is based on a UV-curing adhesive from Henkel and a UV-transparent polycarbonate blend from Covestro.

With a strong consumer push to reduce electric vehicle prices, large-scale and cost-efficient li-ion battery cell assembly is a prerequisite for every automotive OEM. As such, Henkel’s Loctite AA 3963 battery assembly adhesives and Covestro’s UV transparent polycarbonate blend Bayblend® were developed for compatibility with high-volume automated dispensing techniques and offer flexible and fast cure mechanisms. The acrylic adhesive was formulated for use with the cell holder, which is constructed of a special flame-retardant plastic. It provides strong adhesion to the substrate material and offers production adaptability through long open times and short cure cycles.

Efficient and flexible production

“High-volume manufacturing operations with short cycle times and process flexibility are essential,” explains Frank Kerstan, Head of e-Mobility Europe at Henkel. “The Loctite OEM-approved adhesive designed to secure cylindrical li-ion cells into a carrier is a one-part, cure-on-demand formulation. After high-speed dispensing, the material’s long open time inherently builds adaptability into the process by allowing for any unexpected production interruption. Once all cells are placed into the adhesive and secured in the holder, curing is activated with ultra-violet (UV) light and takes place in less than five seconds.” This is a major advantage over conventional manufacturing where curing times can range from several minutes to hours, thus requiring additional storage capacity for parts.

The cell holders are manufactured from Covestro’s PC+ABS blend Bayblend® FR3040 EV. With a thickness of only one millimeter, the plastic already meets category V-0 of the Underwriters Laboratories’ UL94 flammability rating but shows good permeability for UV radiation in the wavelength range above 380 nanometers.

“The material allows us to construct dimensionally stable parts that are necessary for automated mass assembly,” says Steven Daelemans, Market Development Manager E-Mobility in the Polycarbonates segment at Covestro. “Together with the fast-curing capability of the Loctite adhesives, this material combination delivers an innovative approach to large-scale cylindrical li-ion battery module production.”

Watch this video on how Covestro’s and Henkel’s solutions enable the efficient assembly of Li-ion cells in electric vehicles.

About Covestro
With 2019 sales of EUR 12.4 billion, Covestro is among the world’s largest polymer companies. Business activities are focused on the manufacture of high-tech polymer materials and the development of innovative solutions for products used in many areas of daily life. The main segments served are the automotive, construction, wood processing and furniture, and electrical and electronics industries. Other sectors include sports and leisure, cosmetics, health and the chemical industry itself. Covestro has 30 production sites worldwide and employs approximately 17,200 people (calculated as full-time equivalents) at the end of 2019.

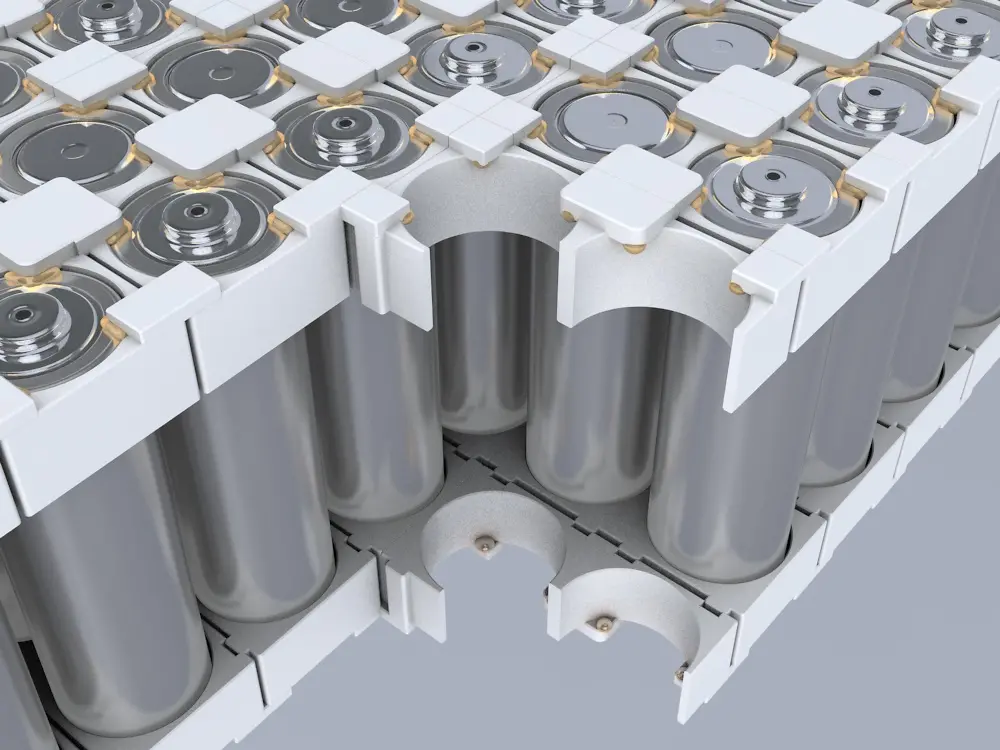

Battery modules with cylindrical cells are constructed with Covestro’s Bayblend® material and efficiently assembled with Henkel’s Loctite adhesive.

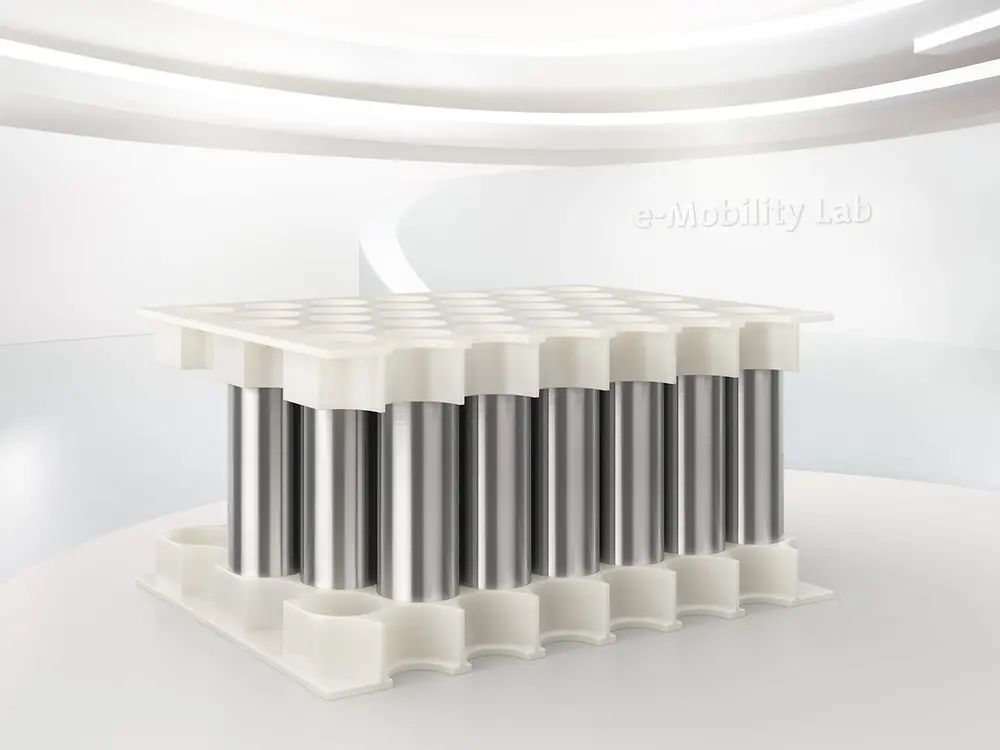

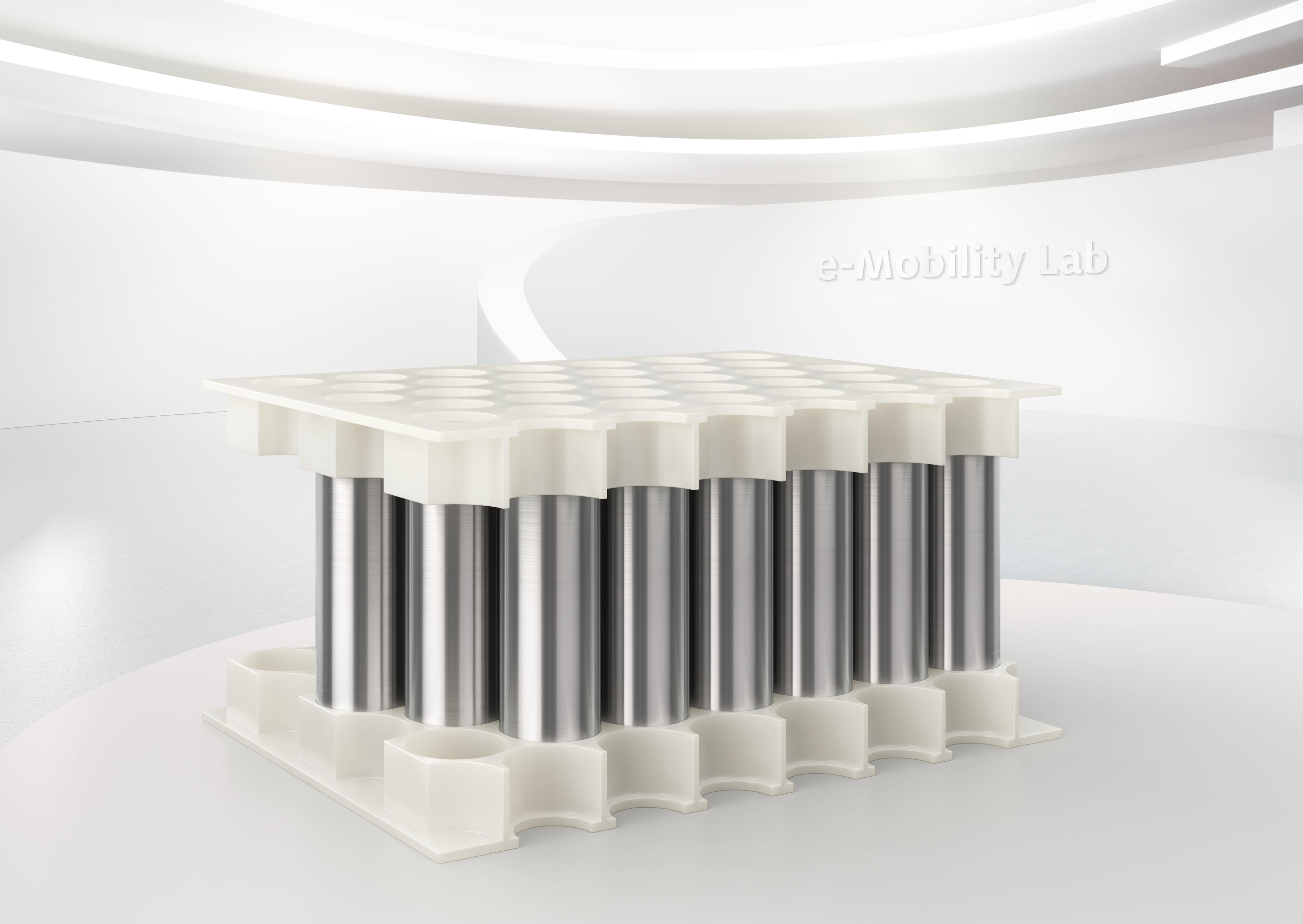

Battery modules with cylindrical cells are constructed with Covestro’s Bayblend® material and efficiently assembled with Henkel’s Loctite adhesive.

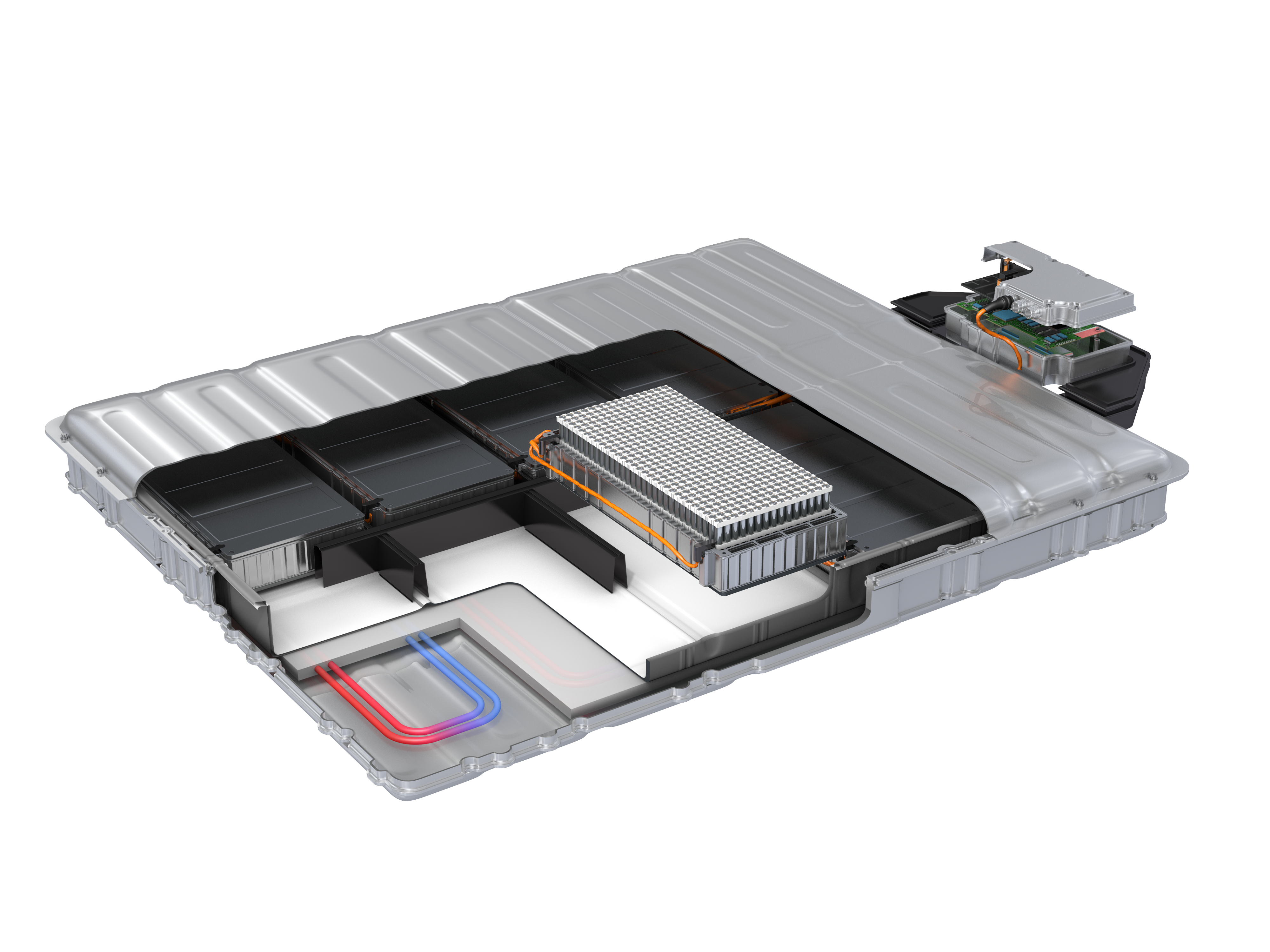

EV battery systems with cylindrical cells require solutions that allow for automated mass assembly – the focus of Covestro’s and Henkel’s partnership. (Photo: Henkel, PR082)
